Rails available in three lengths to allow you to install two kits end-to-end on the same rail. Rails are pre-drilled at each end to allow for interconnection with other rails or the installation of soft close.

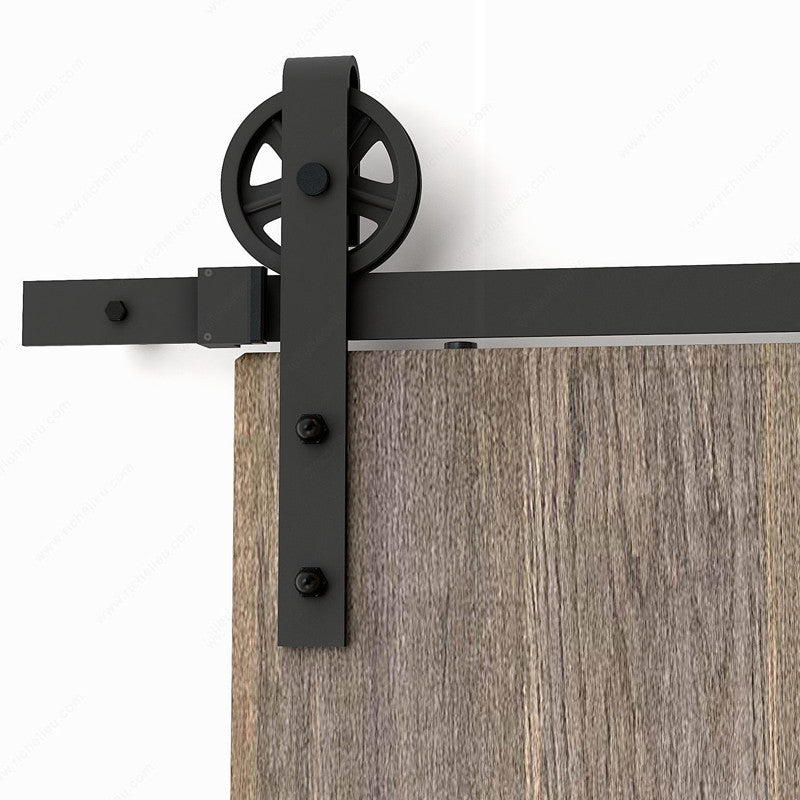

This kit provides 8 washers (for 3 m rails) to adjust the distance between track and wall and to allow the roller to properly slide on the track. These washers must be installed only for this model (the "Ferris Wheel" kit). Please note, if you have a shorter rail, you will need less than 8 washers. Washer thickness: 6 mm.
Security: Each roller unit is equipped with a device that prevents derailment during rough use of the door.
Weight Capacity per Door: 15 to 100 kg
Door Type: Wood
Door Thickness: 1-3/8" to 1-3/4"
Soft-Close Mechanism: Available, Sold Separately
Function: Single Panel
Roller Position: Upper
Door Width: 24" to 60"
Design Intent: Closet & Walk-In Closet, Standard Access Door
Roller Type: Ball Bearing
Door Installation: In Front of Wall
Track Mounting: Wall Front Using Brackets
Door Mounting Method: Drill

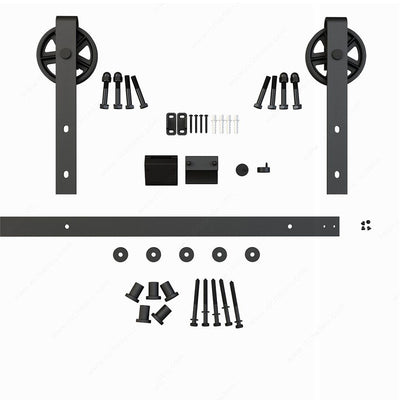

2 roller units (120 mm wheels) with screws for 1-3/8" or 1-3/4" door
2 end bumpers with screws
2 anti-derailer units with screws
1 floor-level guide for wood door with screws
8 spacers (for installation between the wall and the rail brackets)
Wall-mount brackets and screws included.
*Important: Please note that the 3 m version of this rail comes in 2 pieces. Two 1.5 m rails joined by a connector plate.
Picture is for visual reference only: actual product may vary from that shown in photo. Be sure to order hardware before beginning fabrication or installation work. Always use the instructions inside the packaging provided by the manufacturer.
Manufacturer reserves the right to make technical changes or modify information without prior notice. All technical drawings and documents contain examples for the assembly of different supplier's hardware. Customer cannot make any claims based on the use of these documents. No responsibility is assumed for design details relating to the construction or project.
Installation should be undertaken by qualified persons. Ensure product is correctly installed using anchors that are appropriate for the supporting material. Never exceed manufacturer-recommended maximum weight or dimensions. Never use any spray lubricant on these products. Use a dry cloth to remove all fragments, dust, and residue (sawdust and/or aluminum) from rails before the installation of the roller units.
